Auswahl aus elektrischen Aktuatoren - Push-/Pull-Motion
You can choose from a series of electric actuators with a motor attached to mechanical components. Ready-to-use without the need for installation, adjustment, or inspection.
Electric actuators that integrate a motor with a linear motion mechanism and are ideal for "pushing"/"pulling" loads are available.
Selection Start
View the List of Installed Motor Frame Size: 20 mm, 28 mm
| Series Name Type |
Model Width × Height |
Stroke (mm) |
Thrust (N) |
Push Force (N) |
Dimensions (Unit: mm) |
|---|---|---|---|---|---|

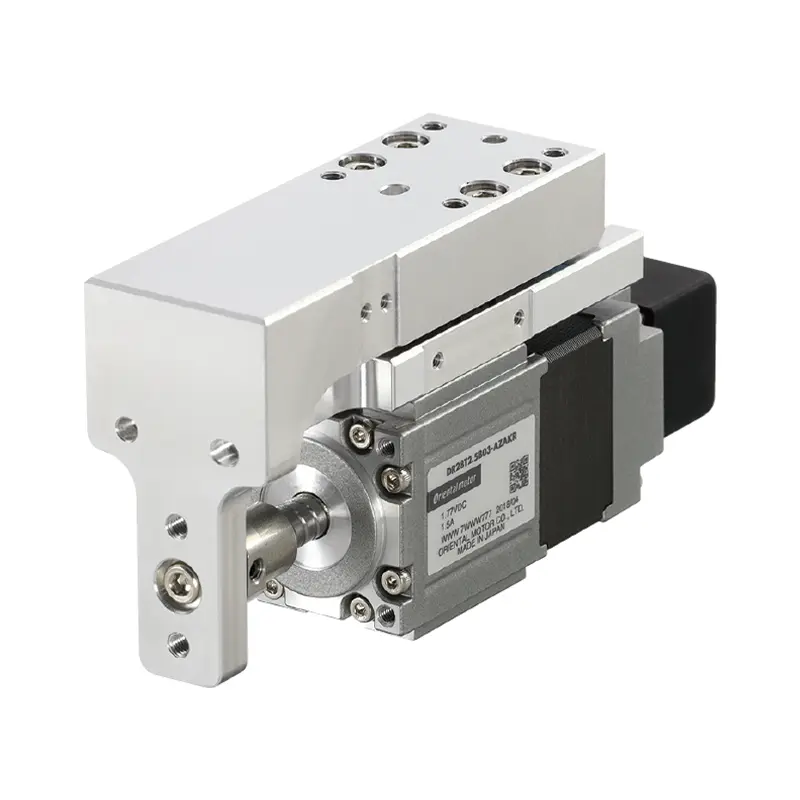

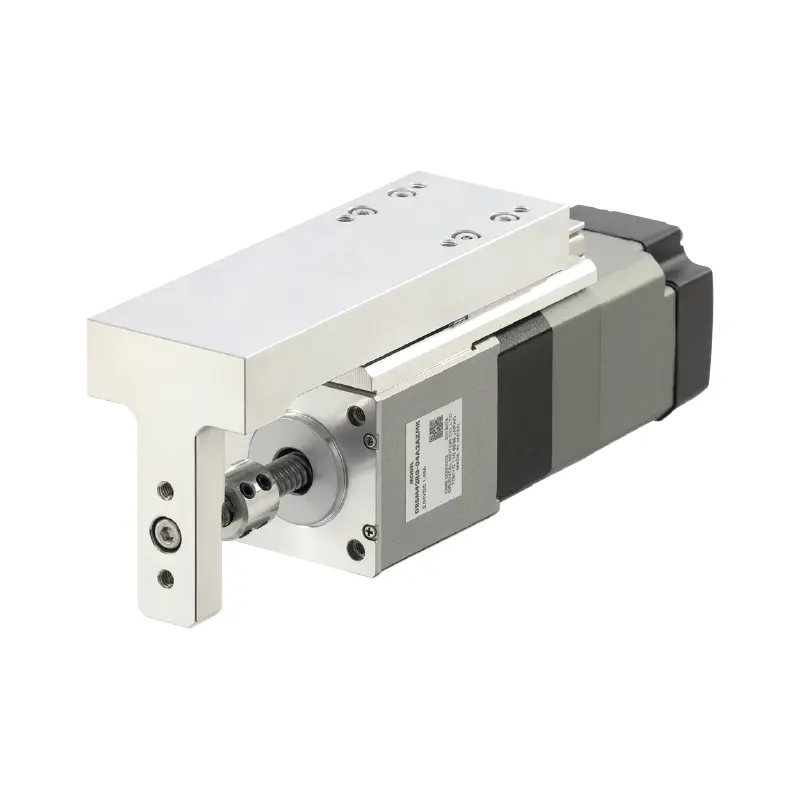

| Compact Electric Cylinder DR Series Table type  |
DR20 20 mm × 20 mm |
25 | ~15 | - |

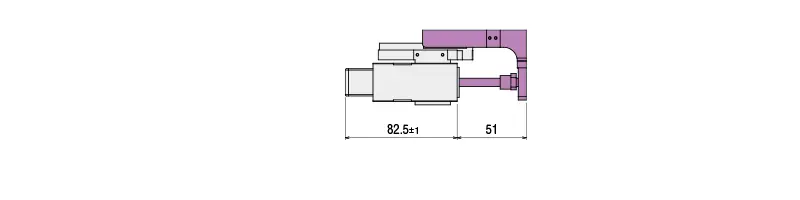

 DR20T1B02-AZAKL |
| Compact Electric Cylinder DR Series Table type  |
DR28 28 mm × 28 mm |
30 | ~40 | ~50* |
 DR28T1B03-AZAKL |
| Electric Cylinder EAC Series Straight Type  |
EAC2W 28 mm × 86 mm |
50~150 | ~50 | ~80 |
 EACM2WF15AZAK-G |
- Push-motion operation is performed only with lead 2.5 mm.
The shaded areas in the dimensions are moving parts.
View the List of Installed Motor Frame Size: 42 mm
| Series Name Type |
Model Width × Height |
Stroke (mm) |
Thrust (N) |
Push Force (N) |

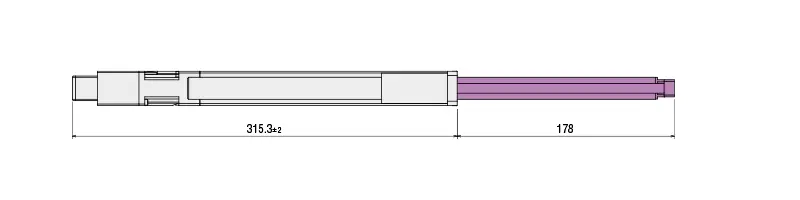

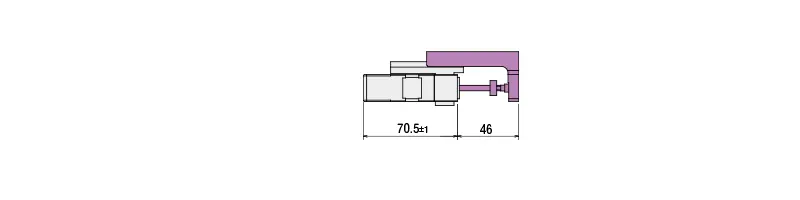

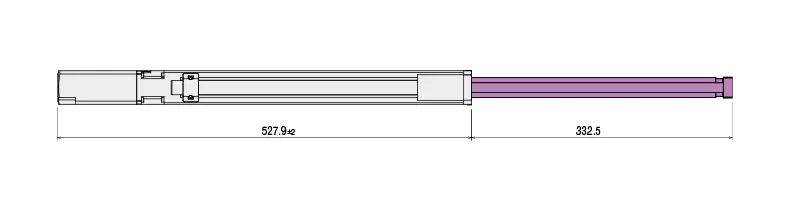

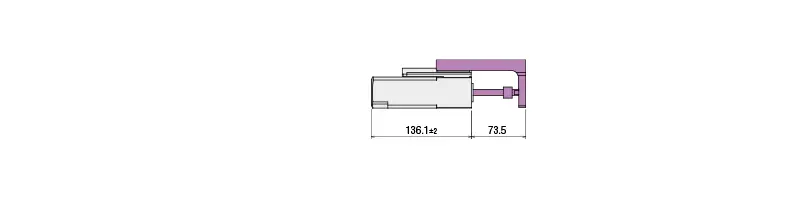

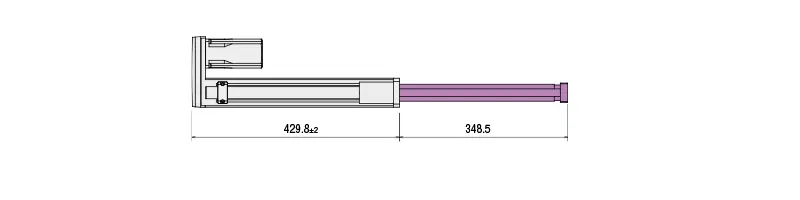

Dimensions (Unit: mm) |
|---|---|---|---|---|---|
| Compact Electric Cylinder DRS2 Series Guide Type  |
DRSM42 42 mm × 42 mm |
40 | ~200 | ~400 |

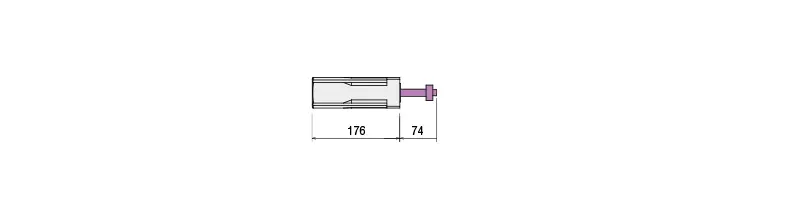

 DRSM42LG-04A2AZMK |

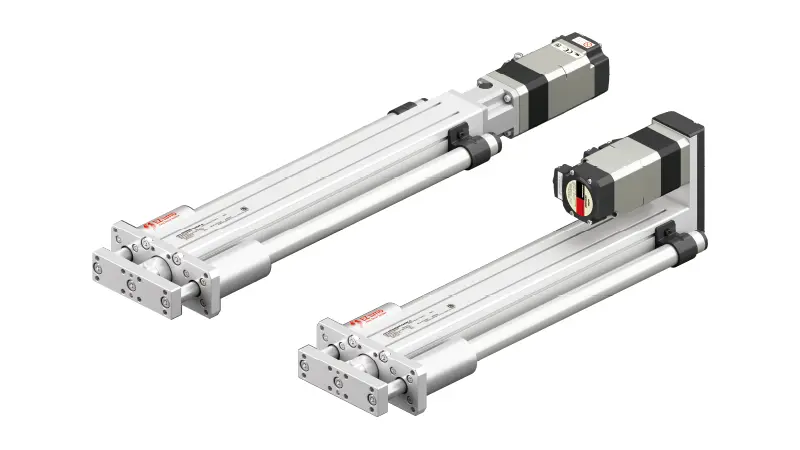

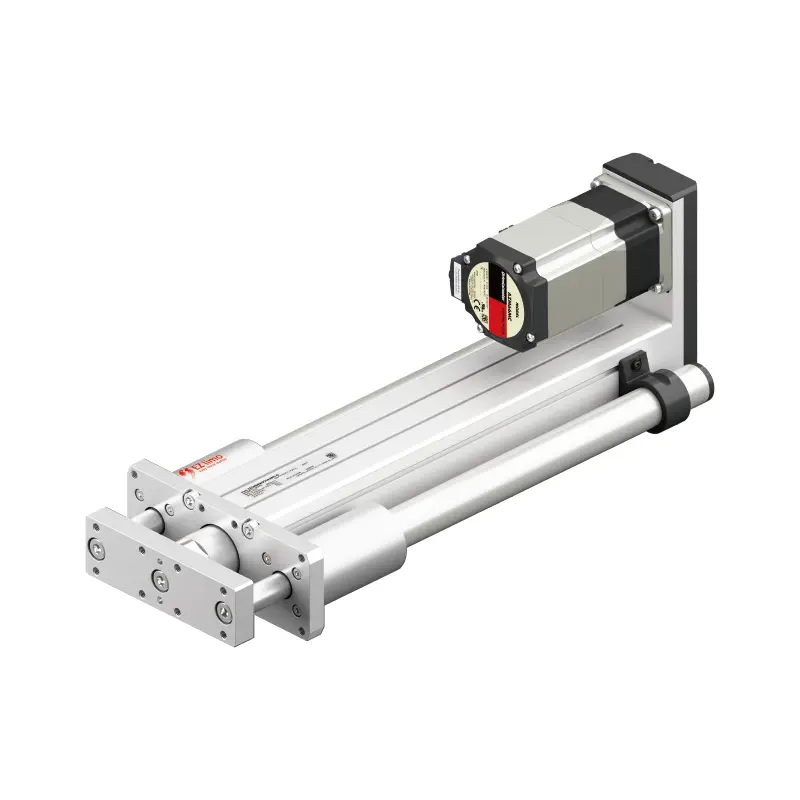

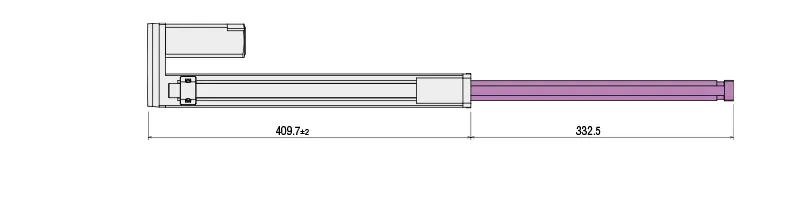

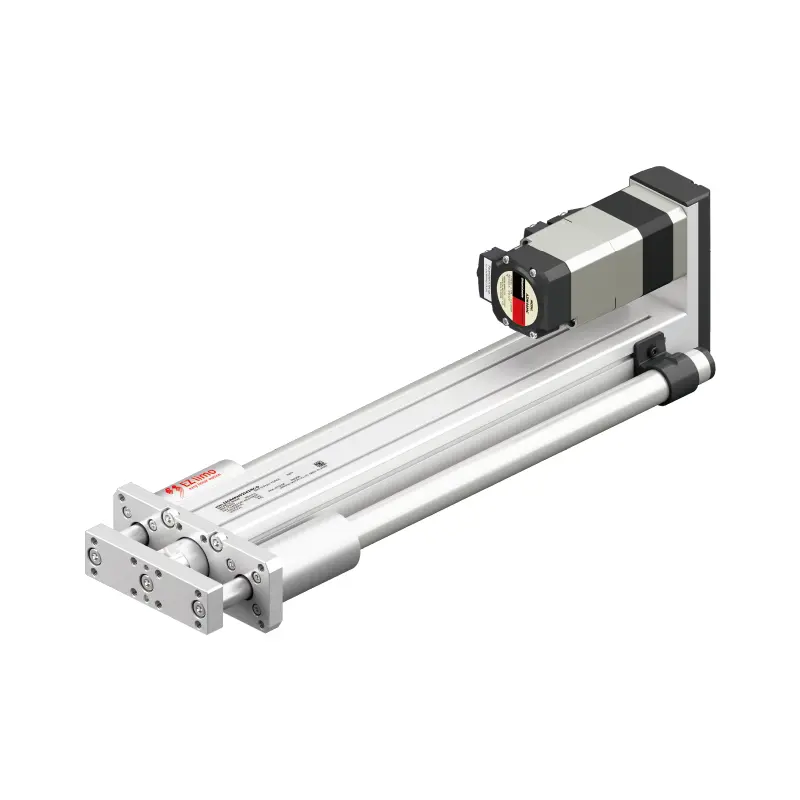

| Electric Cylinder EAC Series Reversed Motor Type  |
EAC4W 42 mm × 114 mm |
50~300 | ~125 | ~200 |
 EACM4RWE30AZMC-G |

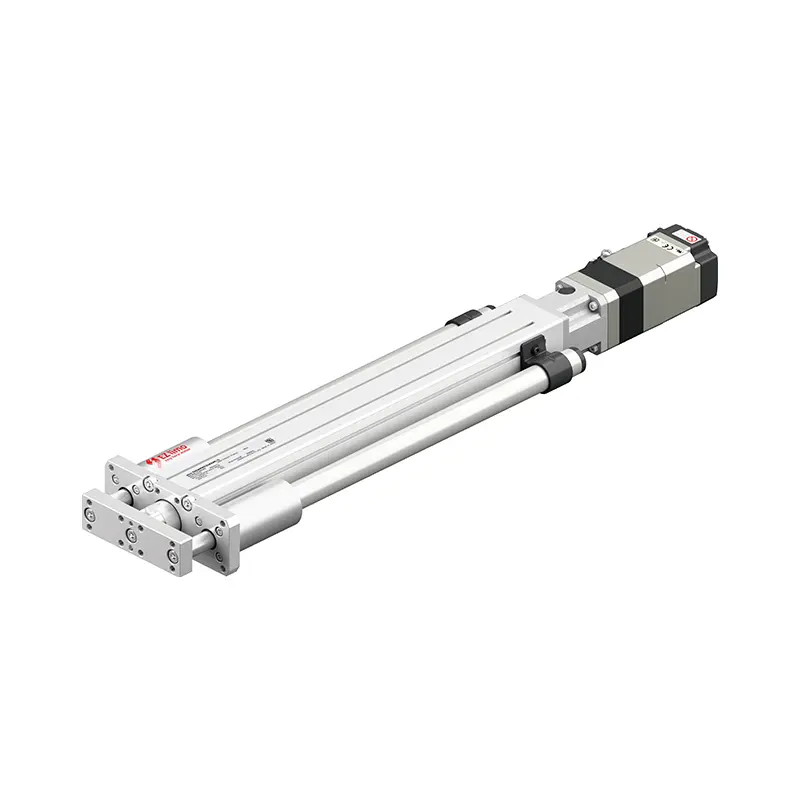

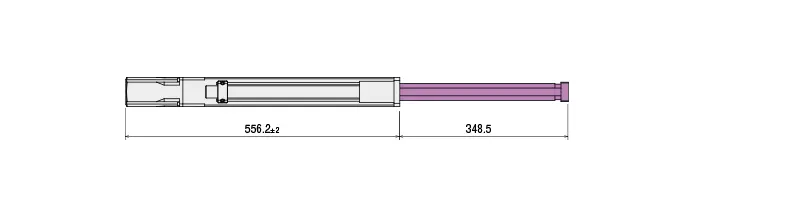

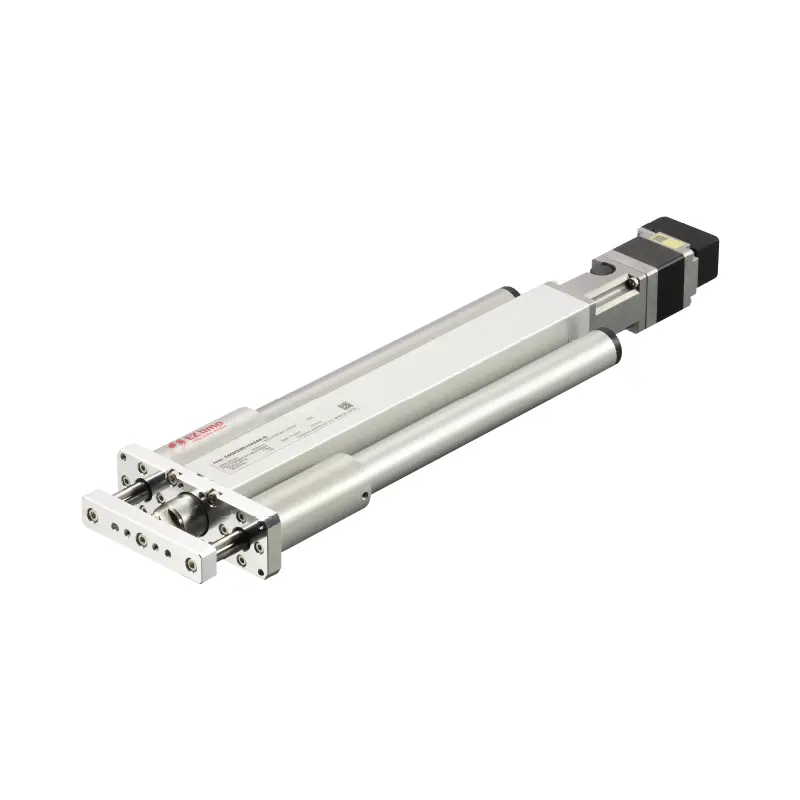

| Electric Cylinder EAC Series Straight Type  |
~140 |
 EACM4WE30AZMC-G |
- The parentheses ( ) indicate the specifications for the non-guide type.
The shaded areas in the dimensions are moving parts.
View the List of Installed Motor Frame Size: 60 mm
| Series Name Type |
Model Width × Height |
Stroke (mm) |
Thrust (N) |
Push Force (N) |
Dimensions (Unit: mm) |
|---|---|---|---|---|---|
| Compact Electric Cylinder DRS2 Series Non-Guide Type  |
DRSM60 60 mm × 60 mm |
50 | ~500 | ~500 |
 DRSM60-05A4AZMK |
| Electric Cylinder EAC Series Reversed Motor Type  |
EAC6W 60 mm × 156 mm |
50~ 300 |
~360 | ~500 |
 EACM6RWE30AZMC-G |

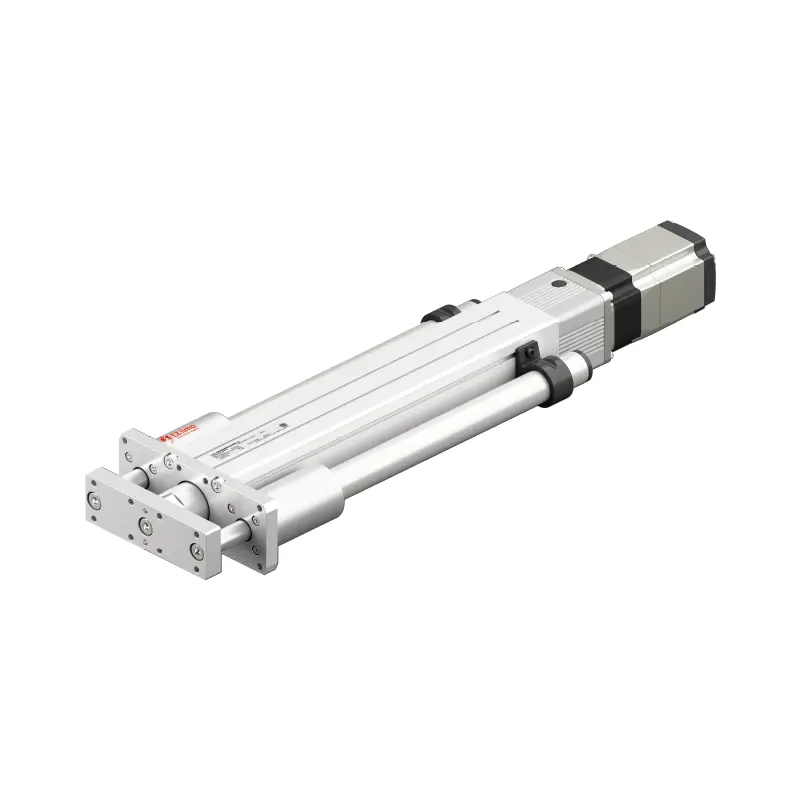

| Electric Cylinder EAC Series Straight Type  |
~400 |
 EACM6WE30AZMC-G |
|||

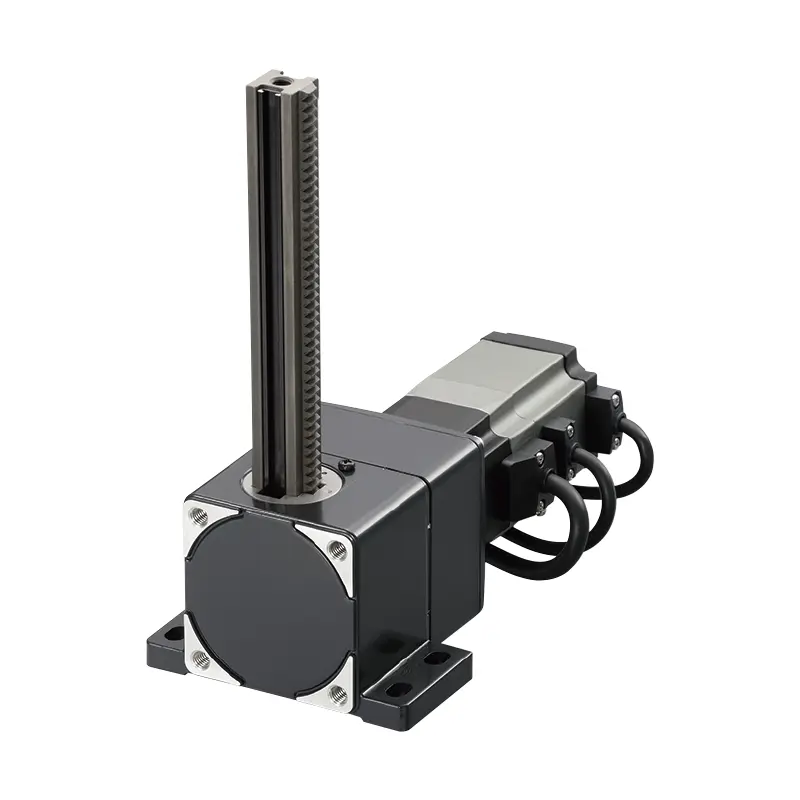

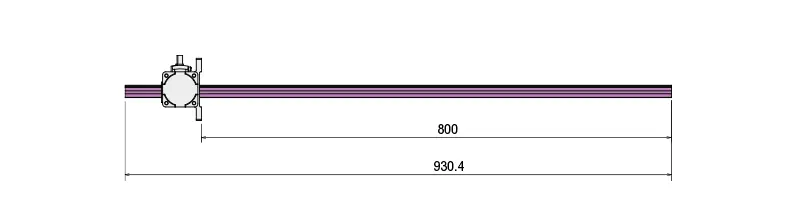

| Rack-and-Pinion System L Series F Type  |
LM2 60 mm × 60 mm |
100~ 800 |
~306 ※ |
~306 |
 LM2F90AZMC-8 |

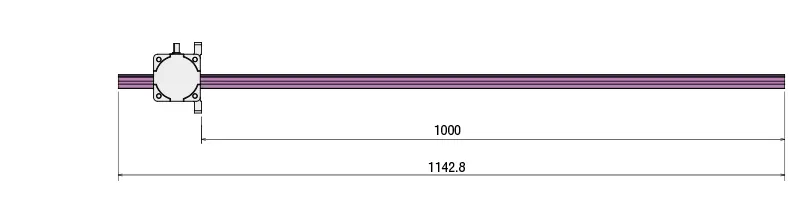

| LM4 85 mm × 85 mm |
100~ 1,000 |
~1,008* | ~1,008 |
 LM4F40AZMC-10 |
|

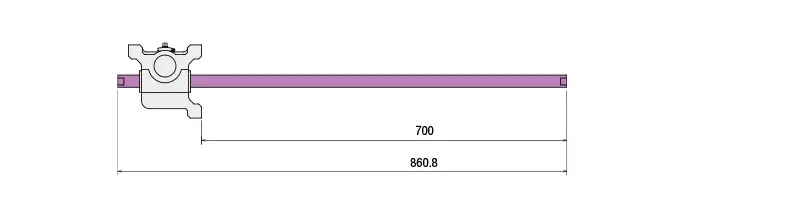

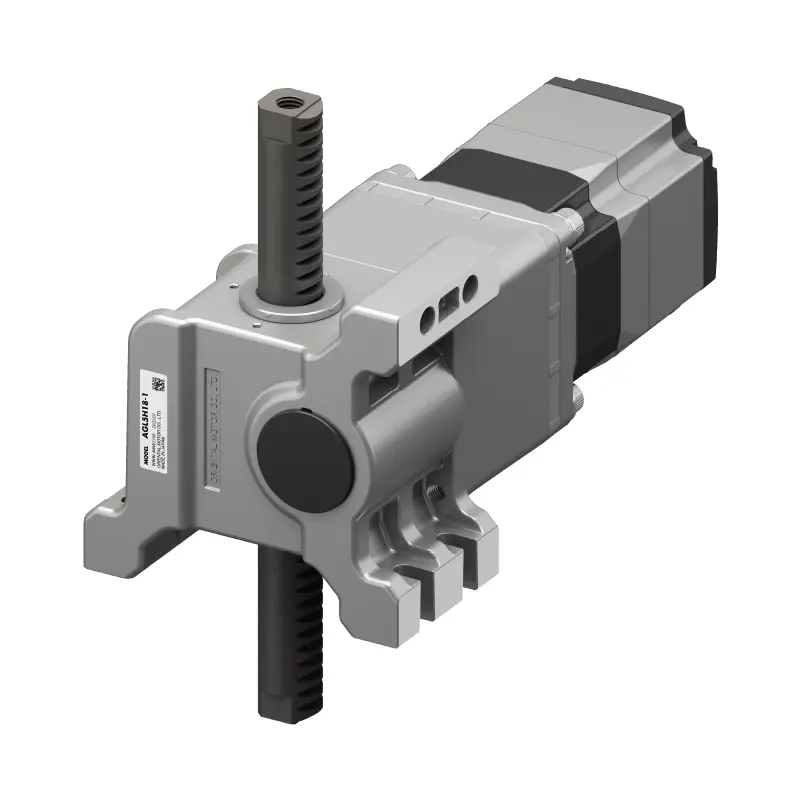

| LJ Linear Head AZ Series Combinations  |
AGL5H18 90 mm × 90 mm |
100~ 700 |
~1,961* | ~1,961 |
 AGL5H18-7+AZM98MC-TS30U |
- The value of the load thrust plus the load acceleration thrust should not exceed the thrust value.
The shaded areas in the dimensions are moving parts.

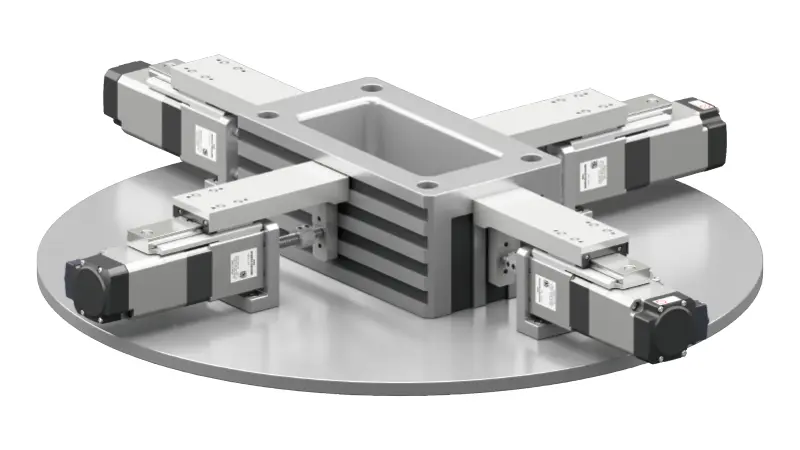

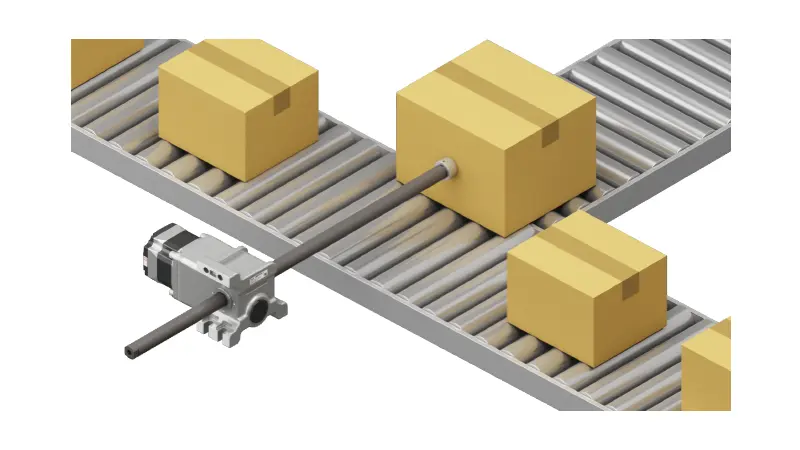

Application Examples
We introduce examples of equipment that we have manufactured in-house and specific solution examples for equipment challenges. Based on these, we provide easy-to-understand illustrations and videos on how to choose and utilize our products.
Click here for details
