Eigenschaften | Rack-and-Pinion System L Series αSTEP AZ Series Equipped

Compact Size and Maximum Transportable Mass of 100 kg

Comparison With Electric Linear Slide

The rack-and-pinion system can transport the transportable mass if it is mounted without consideration of the moment of inertia.

Overview of Rack-and-Pinion System

The rack-and-pinion system can easily convert the rotation of the motor into linear motion.
Although the linear motion mechanism part is compact in design, it can transport a large load due to its high strength processing.

Contributing to Design Efficiency

Reduces Startup Time

The rack-and-pinion system reduces the number of components traditionally used, significantly reducing the man-hours required for design and assembly.

Space Saving

By fixing the screw holes on both ends of the rack, the main unit can be self-propelled. This function is effective for equipment that is too small to provide motor space.

Allows Setting in mm Units

αSTEP AZ Series is used for the drive motor.
Using together with the MEXE02 support software makes setting travel amount in mm units easy, allowing for a variety of linear motion applications.

Minimum Travel Amount

High-Speed Type	Large Transportable Mass Type
0.01 mm	0.001 mm

Operating Speed Range (For AC input type)

High-Speed Type	Large Transportable Mass Type
	Frame Size 60 mm	Frame Size 80 mm
0~500 mm/s	0~90 mm/s	0~40 mm/s

• Click here for details on the AZ Series
• Click here to download the MEXE02 support software for free

Applications

The rack-and-pinion system, which can be applied to a variety of applications, is a user-friendly product that can be selected as if it were a component.

Rack Moving Direction	Motor Fixed	Rack Fixed

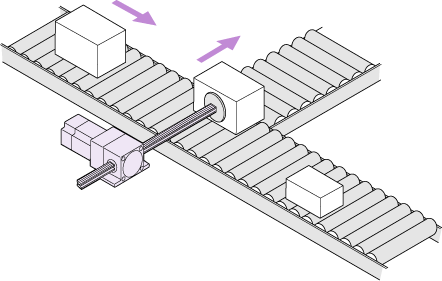

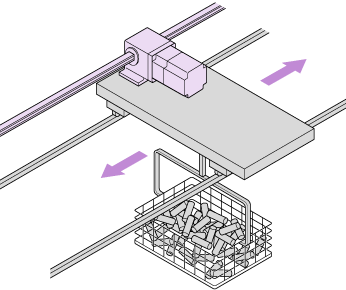

Parallel (B type)	Easily move objects by pushing or pulling.	A wide variety of stroke and speed is available.
Vertical (F type)	Vertical operation is also easy. Electromagnetic brake drop protection is also available.	Using the screw holes at the end of rack simplifies the fastening of loads and rack fixing.

Labor-Saving Ideas

At Japan's Manufacturing sites, labor shortages due to a decline in the working population associated with the decreasing birthrate and aging population is becoming an issue. Amidst this, there is an urgent need for labor-saving that reduces the burden of "heavy lifting work" and "repetitive work such as sorting." Rack-and-pinion system that transports high loads contributing to labor-saving in manufacturing operations.

Ausgestattet mit batterielosem Absolutencoder

Der Motor ist mit einem kleinen batteriefreien mechanischen Absolutencoder (ABZO-Sensor) ausgestattet. Dies kann dazu beitragen, die Produktivität zu steigern und die Kosten zu senken.

• Mechanischer Encoder
  Selbst wenn während des Betriebs die Stromversorgung unterbrochen wird, bleiben die Positionsinformationen erhalten.
• Multiturn-Absolutencoder
  Die Erkennung der Absolutposition ist im Bereich von ±900 Umdrehungen (1.800 Umdrehungen) der Motorwelle möglich.

Die Sequenzfunktion vereinfacht die Programmierung

Die Positioniervorgänge der AZ-Serie verfügen über eine Vielzahl von Ablauffunktionen, wie z. B. die Einstellung eines Timers zwischen den Vorgängen und Linked Operation, die bedingte Verzweigung und die Loop-Funktion.
Diese Funktionen können mit der Parametrier-Software MEXE02 eingestellt werden, was das Programm der übergeordneten Steuerung vereinfacht.

• Einstellung der Fahrsatzdaten (max. 256)
• I/O-Signale (6 Eingänge, 6 Ausgänge)
• Remote I/O-Signale (16 Eingangbits, 16 Ausgangsbits)

Return-to-Home Not Required (Built-in controller type)

Even if the power shuts down during a positioning operation, the position information is retained. With the built-in controller type, the positioning operation can be restarted without performing return-to-home, after an emergency stop on the production line or a blackout.

Data Collection of Motor Operation Status and Functions Useful for Preventive and Predictive Maintenance

This software is equipped with various monitoring functions for checking the operating status of the motor.
By using different types of equipment for different situations, it is possible to shorten the start-up and adjustment time of the equipment, as well as to utilize it for maintenance and servicing.

Monitoring Function to Visualize the Motor Operating Status and Help Collect Data

The ABZO sensor bulit in the AZ Series allows you to monitor the motor's operating status numerically.

[Monitoring With MEXE02 Support Software]

In addition, the built-in controller type can realize data collection at a host master via industrial network.

Information Functions Useful for Preventive and Predictive Maintenance

By setting arbitrary numerical values for the monitored information items, external signals can be output when the values are reached.
Importing this information into the host controller helps in early detection of problems and adjustment of product maintenance timing.

Examples of Information Functions

TRIP Information

You can set the number of rotations you want to output in advance, and output when that number is reached. (Motor operation will continue)

Temperature Information

You can set the desired output temperature in advance, and the driver will output when it reaches that temperature. (Motor operation will continue)

Standardized Wiring, Control, and Maintenance Parts

Various actuator products equipped with the αSTEP AZ Series are available.
Each of them has the same motor and driver, for standardized wiring, control, and maintenance parts.

Wiring Standardization

The wiring for motor cables, I/O signals, and power supply is the same.

Control Standardization

These products can be operated via the same method, since the control method is the same. For the network control, the remote I/O and the command code are also the same. It saves you the trouble of creating a program.

Unification of Maintenance Parts

Maintenance parts can be minimized, since the motor, driver, and cable are common to all. Management costs (parts cost, management space) can be reduced.

AZ Series-Equipped Product Line

Electric Actuators (AZ Series Equipped)

• The power supply input of the installed motor differs between Series. Please refer to each series page for the detailed product line.

Drivers That Can be Selected to Match the Host Controller

Driver Type		Compatible Interfaces	Single Axis Driver
			AC Input	DC Input
Network Compatible	Drivers are controlled directly from a host control device through industrial network	EtherCAT	○	○
		EtherNet/IP™	○	○
		PROFINET	○	○
Built-in Controller	Operation data is built into the driver. Controllable via Modbus (RTU) and I/O.	Modbus (RTU) I/O	○	○
Pulse Input with RS-485 Communication	Controlled by pulse signal. Motor status information can be monitored via Modbus (RTU).	Pulse input Modbus (RTU)	○	○
Pulse Input	Controlled by pulse signal	Pulse input	○	○

• DC input mini drivers and multi-axis driver lineups are also available.

Einfacher Betrieb vom PC mit der Parametrier-Software MEXE02

Mit der Parametrier-Software MEXE02 können Fahrsatzdaten und verschiedene Parameter eingestellt, Positionen geteacht und Antriebe überwacht werden.

Hier klicken, um die Parametrier-Software herunterzuladen

Umfassende Unterstützung durch eine Vielzahl von Funktionen der Software vom Start bis zur Wartung

• Inbetriebnahme und Test

  Nützliche Funktionen für die Verdrahtungsprüfung und eine Testfunktion sind vorhanden.

  • Einstellen und Speichern von Fahrsatzdaten
  • I/O-Test
  • Teaching, Remote Operation
• Optimierung

  Die folgenden Funktionen helfen bei der Optimierung der Fahrsatzdaten nach der Inbetriebnahme des Antriebs.

  • Waveform Monitor
• Diagnose und Wartung

  Diagnose- und Wartungsfunktionen stehen für die Fehlerdiagnose und Wartung während des Betriebs zur Verfügung.

  • Alarm Monitor
  • Unit Information Monitor
  • Status Monitor

Hier klicken, um Details zu Funktionen der Parametrier-Software zu erhalten
