Mounting Bracket Mounting Brackets for Circuit Products
MAFP06W-6
Mounting Brackets for Circuit Products
| Produktklassifikation | Produktname | Preis | Versand |
|---|---|---|---|
| Mounting Brackets for Circuit Products | MAFP06W-6 | 51.00 € | Up to 10 pcs Estimated Ship 3weeks |

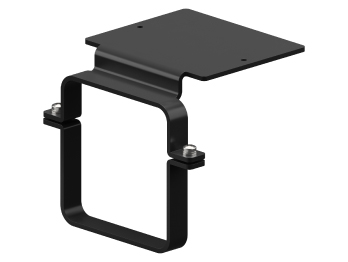

| Beschreibung | This is a metal fitting that attaches the control circuit to the side of the motor. Applicable products (control circuit): AZ series mini driver (excluding AZD-KR2D) Applicable products (motor): AZ series connector type, mounting angle dimension 60 mm (excluding FC geared type) Note: Pay attention to the bending radius and cable Length of the connection cable. In addition, for cables with a Length of 0.2 m, use the cable with the pull-out direction facing away from the output shaft. |
|---|
Inklusive
- Mounting Brackets for Circuit Products: None (The customer must provide the screws used to fasten the circuit product to the mounting bracket.)
Spezifikationen

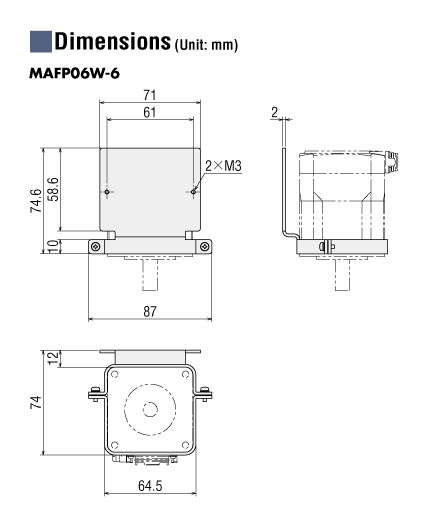

Abmessungen
Daten-Download
Standards
Hazardous Substances
The product does not contain any substances (10 substances) exceeding the regulation values of the RoHS Directive (2011/65/EU, 2015/863/EU).
For more information about compliance with regulations on chemical substances in Oriental Motor's Products, click here.
Kabel und Zubehör
