List of Cables for AC Motors
Connection Cable
[1] Connection Cable for Terminal Box Type (with round terminals)
Cable with pre-crimped round terminals for immediate wiring inside the terminal box. Machined to the optimum length for wiring inside the terminal box.
For Induction Motors and Reversible Motors
| Applicable Motors | Product Name | Length (m) | Cable, Specifications | ||
|---|---|---|---|---|---|
| Product Line | Series | Power Supply | |||
| Induction Motors | KIIS Series KII Series |
Three-Phase | CC010TA04B | 1 |
Cable outer diameter Φ10.9 mm Cable cores AWG18
|
| CC020TA04B | 2 | ||||
| CC030TA04B | 3 | ||||
| CC050TA04B | 5 | ||||
| CC100TA04B | 10 | ||||
| CC200TA04B | 20 | ||||
| Induction Motors Reversible Motors |
KII Series | Single-Phase | CC010TA04A | 1 | |
| CC020TA04A | 2 | ||||
| CC030TA04A | 3 | ||||
| CC050TA04A | 5 | ||||
| CC100TA04A | 10 | ||||
| CC200TA04A | 20 | ||||
For Electromagnetic Brake Motor
| Applicable Motors | Product Name | Length (m) | Cable, Specifications | ||
|---|---|---|---|---|---|
| Product Line | Series | Power Supply | |||
| Induction Motors | KIIS Series | Three-Phase | CC010TA06B | 1 |
Cable outer diameter Φ10.9 mm Cable cores AWG18
|
| CC020TA06B | 2 | ||||
| CC030TA06B | 3 | ||||
| CC050TA06B | 5 | ||||
| CC100TA06B | 10 | ||||
| CC200TA06B | 20 | ||||
| Induction Motors | KII Series | Single-Phase | CC010TA06A | 1 | |
| CC020TA06A | 2 | ||||
| CC030TA06A | 3 | ||||
| CC050TA06A | 5 | ||||
| CC100TA06A | 10 | ||||
| CC200TA06A | 20 | ||||
[2] Connection Cable (without terminal treatment)

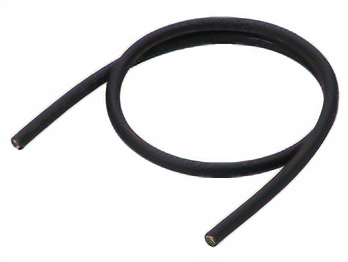

Cable for wiring three-phase and single-phase motors. Can also be used for terminal box wiring.
For Induction Motors, Reversible Motors, Torque Motors, and Low-Speed Synchronous Motors
| Applicable Series | Cable, Specifications | Product Name | Length (m) |
|---|---|---|---|
|
KIIS Series KII Series K Series (except with small terminal box) World K Series BH Series TM Series SMK Series |
Cable outer diameter Φ10.9 mm Cable cores AWG18
|
CC010G04 | 1 |
| CC020G04 | 2 | ||
| CC030G04 | 3 | ||
| CC050G04 | 5 | ||
| CC100G04 | 10 | ||
| CC200G04 | 20 |
For Electromagnetic Brake Motor
| Applicable Series | Cable, Specifications | Product Name | Length (m) |
|---|---|---|---|
|
KIIS Series KII Series K Series (except with small terminal box) World K Series BH Series |
Cable outer diameter Φ10.9 mm Cable cores AWG18
|
CC010G06 | 1 |
| CC020G06 | 2 | ||
| CC030G06 | 3 | ||
| CC050G06 | 5 | ||
| CC100G06 | 10 | ||
| CC200G06 | 20 |
For Watertight, Dust-Resistant Motors
[3] Capacitor Connection Lead Wire
Lead wire with a crimp terminal that can be connected directly to capacitor terminals
| Product Name | Set Contents | |
|---|---|---|
|
LCCN0510 | White: 5 pcs. Red: 5 pcs. |
