Cables: For AZ Series Connector Type DC Input Network Compatible

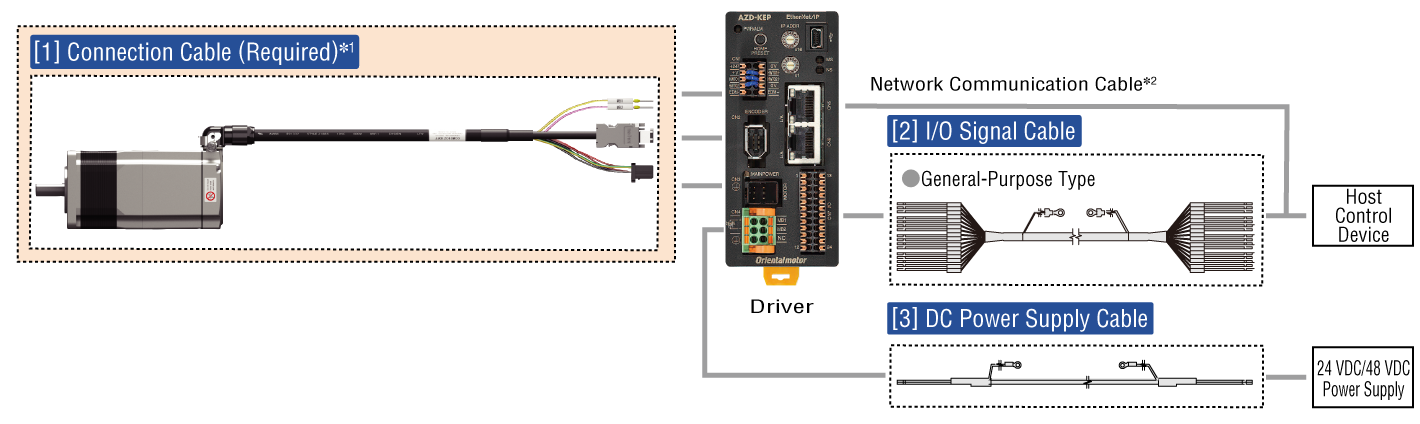

| Number in Illustration | Cable Name |
|---|---|
| [1] | Connection Cable Set |
| [2] | I/O Signal Cable |
| [3] | DC Power Supply Cable |
- *1
- Flexible connection cable set and flexible extension cable set with excellent bending resistance are also available.
- *2
- Not supplied.
Note
- The maximum extension distance between the motor and driver is 10 m.
Connection Cables, Flexible Connection Cables
Cable can be used to connect motor with driver. Use flexible connection cables for applications where cables are bent.
- *3 types of cables with different outlet directions are available. Select the cable outlet direction, taking into account the installation requirements.
-
For Motors/Encoders -
For Motors/Encoders/Electromagnetic Brakes
[1] Connection Cables
| Cable Outlet Direction | Length (m) | For Motors/Encoders | For Motors/Encoders/Electromagnetic Brakes |
|---|---|---|---|
| Product Name | Product Name | ||
|
0.5 | CCM005Z1CFF | CCM005Z1DFF |
| 1 | CCM010Z1CFF | CCM010Z1DFF | |
| 2 | CCM020Z1CFF | CCM020Z1DFF | |
| 3 | CCM030Z1CFF | CCM030Z1DFF | |
| 5 | CCM050Z1CFF | CCM050Z1DFF | |
| 7 | CCM070Z1CFF | CCM070Z1DFF | |
| 10 | CCM100Z1CFF | CCM100Z1DFF | |
|
0.5 | CCM005Z1CVF | CCM005Z1DVF |
| 1 | CCM010Z1CVF | CCM010Z1DVF | |
| 2 | CCM020Z1CVF | CCM020Z1DVF | |
| 3 | CCM030Z1CVF | CCM030Z1DVF | |
| 5 | CCM050Z1CVF | CCM050Z1DVF | |
| 7 | CCM070Z1CVF | CCM070Z1DVF | |
| 10 | CCM100Z1CVF | CCM100Z1DVF | |
|
0.5 | CCM005Z1CBF | CCM005Z1DBF |
| 1 | CCM010Z1CBF | CCM010Z1DBF | |
| 2 | CCM020Z1CBF | CCM020Z1DBF | |
| 3 | CCM030Z1CBF | CCM030Z1DBF | |
| 5 | CCM050Z1CBF | CCM050Z1DBF | |
| 7 | CCM070Z1CBF | CCM070Z1DBF | |
| 10 | CCM100Z1CBF | CCM100Z1DBF |
[1] Flexible Connection Cables
| Cable Outlet Direction | Length (m) | For Motors/Encoders | For Motors/Encoders/Electromagnetic Brakes |
|---|---|---|---|
| Product Name | Product Name | ||
|
|
0.5 | CCM005Z1CFR | CCM005Z1DFR |
| 1 | CCM010Z1CFR | CCM010Z1DFR | |
| 2 | CCM020Z1CFR | CCM020Z1DFR | |
| 3 | CCM030Z1CFR | CCM030Z1DFR | |
| 5 | CCM050Z1CFR | CCM050Z1DFR | |
| 7 | CCM070Z1CFR | CCM070Z1DFR | |
| 10 | CCM100Z1CFR | CCM100Z1DFR | |
|
|
0.5 | CCM005Z1CVR | CCM005Z1DVR |
| 1 | CCM010Z1CVR | CCM010Z1DVR | |
| 2 | CCM020Z1CVR | CCM020Z1DVR | |
| 3 | CCM030Z1CVR | CCM030Z1DVR | |
| 5 | CCM050Z1CVR | CCM050Z1DVR | |
| 7 | CCM070Z1CVR | CCM070Z1DVR | |
| 10 | CCM100Z1CVR | CCM100Z1DVR | |
|
|
0.5 | CCM005Z1CBR | CCM005Z1DBR |
| 1 | CCM010Z1CBR | CCM010Z1DBR | |
| 2 | CCM020Z1CBR | CCM020Z1DBR | |
| 3 | CCM030Z1CBR | CCM030Z1DBR | |
| 5 | CCM050Z1CBR | CCM050Z1DBR | |
| 7 | CCM070Z1CBR | CCM070Z1DBR | |
| 10 | CCM100Z1CBR | CCM100Z1DBR |
Other Cables
[2] I/O Signal Cable
General-Purpose Type
- Multi-core shielded cable
- Double-ended discrete wire
- Includes ground wire with round terminal for easy shield grounding
- Select the number of lead wire cores that matches the desired functionality.
| Product Name | Length (m) |
Number of Cores | AWG | Insulator Outer Diameter | Finished Outer Diameter | |
|---|---|---|---|---|---|---|
|
CC06D005B-1 | 0.5 | 6 | 24 | φ1.1 | φ5.4 |
| CC06D010B-1 | 1 | |||||
| CC06D015B-1 | 1.5 | |||||
| CC06D020B-1 | 2 | |||||
| CC10D005B-1 | 0.5 | 10 | φ6.7 | |||
| CC10D010B-1 | 1 | |||||
| CC10D015B-1 | 1.5 | |||||
| CC10D020B-1 | 2 | |||||
| CC12D005B-1 | 0.5 | 12 | φ7.5 | |||
| CC12D010B-1 | 1 | |||||
| CC12D015B-1 | 1.5 | |||||
| CC12D020B-1 | 2 | |||||
| CC16D005B-1 | 0.5 | 16 | ||||
| CC16D010B-1 | 1 | |||||
| CC16D015B-1 | 1.5 | |||||
| CC16D020B-1 | 2 |
[3] DC Power Supply Cable
Shielded cable for connection of DC power supply and electromagnetic brake. Ground wire with round terminal for easy shield grounding.
| Product Name | Length (m) |
AWG | Insulator Outer Diameter | Finished Outer Diameter | |
|---|---|---|---|---|---|
|
CC02D005-3 | 0.5 | 20 | φ1.65 | φ5.9 |
| CC02D010-3 | 1 | ||||
| CC02D015-3 | 1.5 | ||||
| CC02D020-3 | 2 | ||||
| CC02D050-3 | 5 |
Cable Note When Wiring Flexible Cable
Do not bend the cable at the connector. Stress applied to the connectors and terminals causes poor contact and disconnection.
How to Fix the Cable
Fix the connector part in 2 places to prevent it from moving.
Wiring Length and Bending Radius of the Cable
Wiring should be installed at an appropriate length, so that cables are not pulled during movement.
In addition, the bending radius (R) should be 6 times the cable diameter min.
Interference of the Cable
Wire the cables in the cable holder without bringing them into contact with each other. This will add stress to the cable, and cause it to break prematurely. Please check note on cable holders carefully before use.
Cable Kinks
◇Please wire without kinks in the cable. Kinking in a twisted state can cause premature disconnection. After wiring, confirm that there are no kinks in the cable, using the print on the cable surface as a reference.
