Cables: For AZ Series Connector Type AC Input Network Compatible

Cables: For AZ Series Connector Type AC Input Network Compatible
Number in Illustration Cable Name
[1] Connection Cable
[2] I/O Signal Cable
[3] AC Power Supply Cable
[4] DC Power Supply Cable
*1
Flexible connection cable set and flexible extension cable set with high flexibility are also available.
*2
Not supplied.
*3
When using a MECHATROLINK-III compatible driver or a SSCNET III/H compatible driver, please use the general-purpose type.

Note

  • The maximum extension distance between the motor and the driver is 10 m.

Connection Cables, Flexible Connection Cables

Cable can be used to connect motor with driver. Use flexible connection cables for applications where cables are bent.

  • *3 types of cables with different outlet directions are available. Select the cable outlet direction, taking into account the installation requirements.
  • For Motors/Encoders
    For Motors/Encoders
  • For Motors/Encoders/Electromagnetic Brakes
    For Motors/Encoders/Electromagnetic Brakes

[1] Connection Cables

Cable Outlet Direction Length (m) For Motors/Encoders For Motors/Encoders/Electromagnetic Brakes
Product Name Product Name
Output Shaft Side
Output Shaft Side
 1 CCM010Z1AFF CCM010Z1BFF
2 CCM020Z1AFF CCM020Z1BFF
3 CCM030Z1AFF CCM030Z1BFF
5 CCM050Z1AFF CCM050Z1BFF
7 CCM070Z1AFF CCM070Z1BFF
10 CCM100Z1AFF CCM100Z1BFF
Vertical
Vertical
 1 CCM010Z1AVF CCM010Z1BVF
2 CCM020Z1AVF CCM020Z1BVF
3 CCM030Z1AVF CCM030Z1BVF
5 CCM050Z1AVF CCM050Z1BVF
7 CCM070Z1AVF CCM070Z1BVF
10 CCM100Z1AVF CCM100Z1BVF
Rear Shaft Side
Rear Shaft Side
 1 CCM010Z1ABF CCM010Z1BBF
2 CCM020Z1ABF CCM020Z1BBF
3 CCM030Z1ABF CCM030Z1BBF
5 CCM050Z1ABF CCM050Z1BBF
7 CCM070Z1ABF CCM070Z1BBF
10 CCM100Z1ABF CCM100Z1BBF

[1] Flexible Connection Cables

Cable Outlet Direction Length (m) For Motors/Encoders For Motors/Encoders/Electromagnetic Brakes
Product Name Product Name
Output Shaft Side
Output Shaft Side
 1 CCM010Z1AFR CCM010Z1BFR
2 CCM020Z1AFR CCM020Z1BFR
3 CCM030Z1AFR CCM030Z1BFR
5 CCM050Z1AFR CCM050Z1BFR
7 CCM070Z1AFR CCM070Z1BFR
10 CCM100Z1AFR CCM100Z1BFR
Vertical
Vertical
 1 CCM010Z1AVR CCM010Z1BVR
2 CCM020Z1AVR CCM020Z1BVR
3 CCM030Z1AVR CCM030Z1BVR
5 CCM050Z1AVR CCM050Z1BVR
7 CCM070Z1AVR CCM070Z1BVR
10 CCM100Z1AVR CCM100Z1BVR
Rear Shaft Side
Rear Shaft Side
 1 CCM010Z1ABR CCM010Z1BBR
2 CCM020Z1ABR CCM020Z1BBR
3 CCM030Z1ABR CCM030Z1BBR
5 CCM050Z1ABR CCM050Z1BBR
7 CCM070Z1ABR CCM070Z1BBR
10 CCM100Z1ABR CCM100Z1BBR

Note on Use of Flexible Cables

Other Cables

[2] I/O Signal Cable

This cable can be used to connect the driver and host control device.

Connector Type

  • Multi-core shielded cable
  • Single-ended discrete wire
  • Includes ground wire with round terminal for easy shield grounding
Product Name Applicable Drivers Length
(m)		 Number of Cores AWG Finished Outer Diameter
I/O signal cable (connector included)
CC24D005C-1 Built-in positioning function type
Pulse input type with RS-485 communication
Pulse input type
EtherNet/IP compatible*
EtherCAT compatible*
PROFINET compatible* 		0.5 24 24 φ9.5
CC24D010C-1 1
CC24D020C-1 2
  • *Cannot be connected to drivers with DC input. Use a general-purpose type I/O signal cable.

General-Purpose Type

  • Multi-core shielded cable
  • Double-ended discrete wire
  • Includes ground wire with round terminal for easy shield grounding
  • Select the number of lead wire cores that matches the desired functionality.
Product Name Length
(m)		 Number of Cores AWG Insulator Outer Diameter Finished Outer Diameter
I/O signal cable (general-purpose type)
CC06D005B-1 0.5 6 24 φ1.1 φ5.4
CC06D010B-1 1
CC06D015B-1 1.5
CC06D020B-1 2
CC10D005B-1 0.5 10 φ6.7
CC10D010B-1 1
CC10D015B-1 1.5
CC10D020B-1 2
CC12D005B-1 0.5 12 φ7.5
CC12D010B-1 1
CC12D015B-1 1.5
CC12D020B-1 2
CC16D005B-1 0.5 16
CC16D010B-1 1
CC16D015B-1 1.5
CC16D020B-1 2

[3] AC Power Supply Cable

This cable is to connect driver and AC power supply. Cables are available with or without a power supply plug.

Product Name Length
(m)		 Product Line Power Supply Voltage

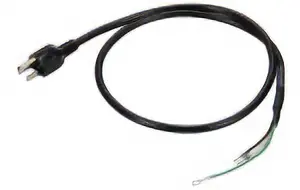

AC power supply cable
CC01AC03P 1 Plug included Single-Phase 100-120 VAC
CC02AC03P 2
CC03AC03P 3

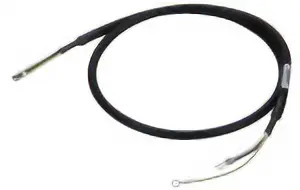

AC power supply cable
CC01AC03N 1 Plug not included Single-Phase 100-120 VAC
Single-Phase 200-240 VAC
CC02AC03N 2
CC03AC03N 3

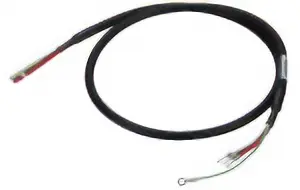

AC power supply cable
CC01AC04N 1 Three-Phase 200-240 VAC
CC02AC04N 2
CC03AC04N 3

[4] DC Power Supply Cable

Shielded cable for connection of DC power supply and electromagnetic brake. Ground wire with round terminal for easy shield grounding.

Product Name Length
(m)		 AWG Insulator Outer Diameter Finished Outer Diameter
DC power supply cable
CC02D005-3 0.5 20 φ1.65 φ5.9
CC02D010-3 1
CC02D015-3 1.5
CC02D020-3 2
CC02D050-3 5
