Cables: For 5-Phase Stepper Motor PKP Series/CVD Series Fully Closed-Loop Control Type Driver

[1] Connection Cable, Flexible Connection Cable

• Cable with connectors on both sides that directly connects a connector-coupled type motor and driver.
• There are 2 types of connector shapes. Select the cable suitable for each shape.

[1] Connection Cable, Flexible Connection Cable (Frame size: 20 mm, 28 mm)

	Length (m)	Connection Cable	Flexible Connection Cable
		Product Name	Product Name
	0.5	CCM005V5AAF	CCM005V5AAR
	1	CCM010V5AAF	CCM010V5AAR
	1.5	CCM015V5AAF	CCM015V5AAR
	2	CCM020V5AAF	CCM020V5AAR
	2.5	CCM025V5AAF	CCM025V5AAR
	3	CCM030V5AAF	CCM030V5AAR
	4	CCM040V5AAF	CCM040V5AAR
	5	CCM050V5AAF	CCM050V5AAR
	7	CCM070V5AAF	CCM070V5AAR
	10	CCM100V5AAF	CCM100V5AAR

[1] Connection Cable, Flexible Connection Cable (Frame size: 42 mm)

	Length (m)	Connection Cable	Flexible Connection Cable
		Product Name	Product Name
	0.5	CCM005V5ABF	CCM005V5ABR
	1	CCM010V5ABF	CCM010V5ABR
	1.5	CCM015V5ABF	CCM015V5ABR
	2	CCM020V5ABF	CCM020V5ABR
	2.5	CCM025V5ABF	CCM025V5ABR
	3	CCM030V5ABF	CCM030V5ABR
	4	CCM040V5ABF	CCM040V5ABR
	5	CCM050V5ABF	CCM050V5ABR
	7	CCM070V5ABF	CCM070V5ABR
	10	CCM100V5ABF	CCM100V5ABR

[1] Connection Cable, Flexible Connection Cable (Frame size: 60 mm)

	Length (m)	Connection Cable	Flexible Connection Cable
		Product Name	Product Name
	0.5	CCM005V5ACF2	CCM005V5ACR2
	1	CCM010V5ACF2	CCM010V5ACR2
	1.5	CCM015V5ACF2	CCM015V5ACR2
	2	CCM020V5ACF2	CCM020V5ACR2
	2.5	CCM025V5ACF2	CCM025V5ACR2
	3	CCM030V5ACF2	CCM030V5ACR2
	4	CCM040V5ACF2	CCM040V5ACR2
	5	CCM050V5ACF2	CCM050V5ACR2
	7	CCM070V5ACF2	CCM070V5ACR2
	10	CCM100V5ACF2	CCM100V5ACR2

[1] Connection Cable, Flexible Connection Cable (Frame Size: 42 mm, 60 mm)

	Length (m)	Connection Cable	Flexible Connection Cable
		Product Name	Product Name
	0.5	CCM005V5AEF	CCM005V5AER
	1	CCM010V5AEF	CCM010V5AER
	1.5	CCM015V5AEF	CCM015V5AER
	2	CCM020V5AEF	CCM020V5AER
	2.5	CCM025V5AEF	CCM025V5AER
	3	CCM030V5AEF	CCM030V5AER
	4	CCM040V5AEF	CCM040V5AER
	5	CCM050V5AEF	CCM050V5AER
	7	CCM070V5AEF	CCM070V5AER
	10	CCM100V5AEF	CCM100V5AER

[2] Extension Cable Driver Side, Flexible Extension Cable Driver Side

• These cables can be used to extend the connection cables.
• When using an extension, keep the overall cable length at 10 m or less.
• Up to 3 cables can be used for connection between motor and driver.

	Length (m)	Connection Cable	Flexible Connection Cable
		Product Name	Product Name
	0.5	CCM005V5ADFT	CCM005V5ADRT
	1	CCM010V5ADFT	CCM010V5ADRT
	1.5	CCM015V5ADFT	CCM015V5ADRT
	2	CCM020V5ADFT	CCM020V5ADRT
	2.5	CCM025V5ADFT	CCM025V5ADRT
	3	CCM030V5ADFT	CCM030V5ADRT
	4	CCM040V5ADFT	CCM040V5ADRT
	5	CCM050V5ADFT	CCM050V5ADRT
	7	CCM070V5ADFT	CCM070V5ADRT
	9	CCM090V5ADFT	CCM090V5ADRT

Note on Use of Flexible Cables

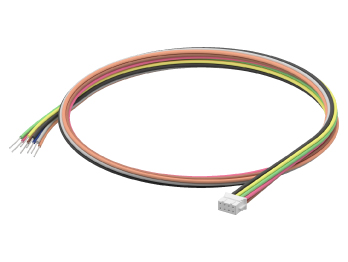

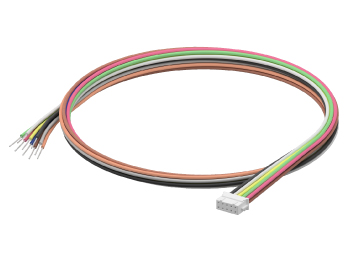

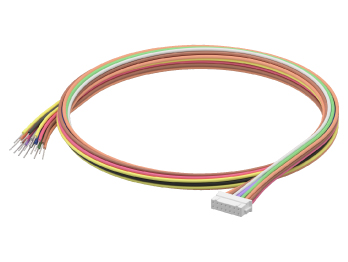

[3] Connection Cable Motor Side

Lead wire type connection cable with a connector crimped, convenient for connecting connector-coupled type motors.

	Product Name	Applicable Product		Length (m)
		Frame Size	Type
	LC5N06A	20 mm 28 mm	Standard Type High-Resolution Type	0.6
	LC5N10A			1
	LC5N06B	42 mm*1	Standard Type High-Resolution Type	0.6
	LC5N10B			1
	LC5N06C2	60 mm	High-Resolution Type	0.6
	LC5N10C2			1
	LC5N06E	42 mm*2 56.4 mm 60 mm	Standard Type TS Geared Type	0.6
	LC5N10E			1

*1

Motor with connector shape model B

*2

Motor with connector shape model A

[4] Connection Cable Without Terminal Treatment, Flexible Connection Cable Without Terminal Treatment

Connection cable for extending the distance between motor and driver. The overall length of the cable between the motor and the driver should be max. 10 m.
The 5-phase stepper motor can be used for products with a motor rated current of 2.4 A max.

	Length (m)	Connection Cable	Flexible Connection Cable
	5	CC05PK5	CC05PK5R
	10	CC10PK5	CC10PK5R
