Features | αSTEP AZ Series Multi-Axis Driver DC Input

3 Types of Interfaces

EtherCAT, MECHATROLINK-III, and SSCNETIII/H compatible products are available.

• For more details about the Slim Type, please contact your nearest branch, sales office, or Customer Support Center.

Reduced Wiring and Cost

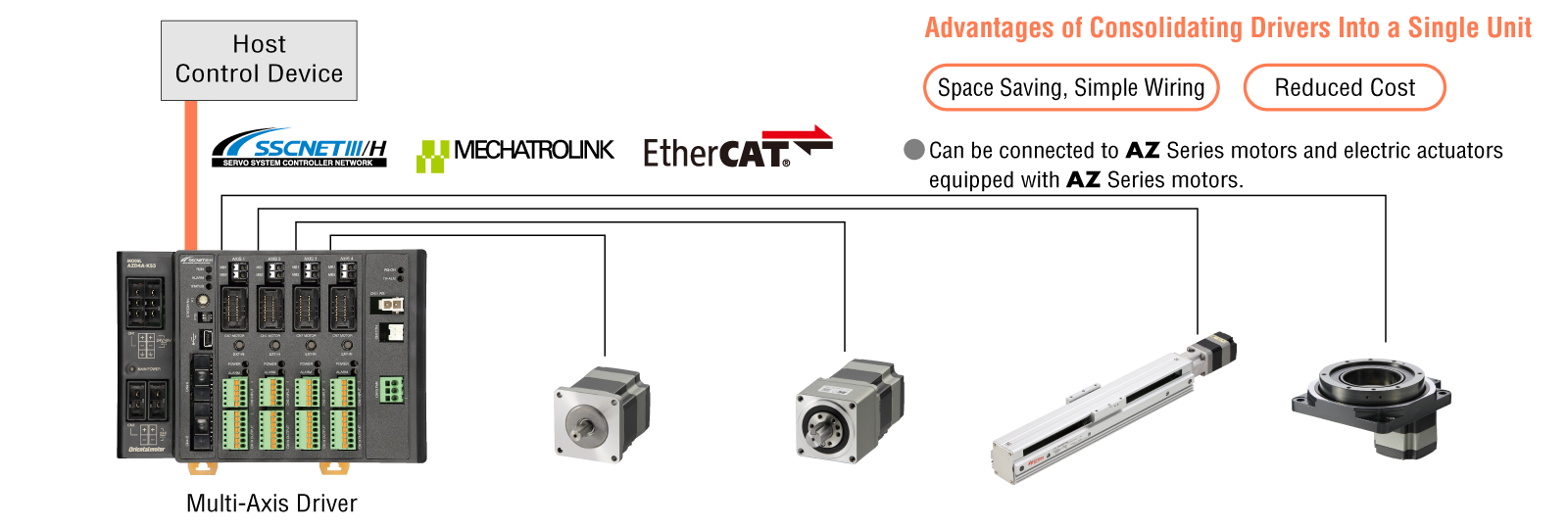

Multiple axes can be controlled with a single driver.

More Compact and Space Saving Compared to a Row of Single Axis Drivers (2-axis type and 4-axis type)

Rather than lining up network compatible Single Axis Drivers, installation space can be reduced.

Facile gestione da PC con software di supporto MEXE02

Utilizzando il software di supporto MEXE02, è possibile impostare e modificare i dati di funzionamento e vari parametri, nonché gestire e monitorare varie condizioni.

Fare clic qui per scaricare il software di supporto

Supporto completo dall'avvio alla manutenzione con una varietà di funzioni

• Avvio e diagnostica

  Vengono fornite funzioni utili per il controllo del cablaggio e il funzionamento del test.

  • Impostazione e salvataggio dei dati di funzionamento
  • Monitoraggio I/O
  • Teaching, funzionamento da remoto
• Regolazione

  Di seguito sono riportate le funzioni che possono aiutare a regolare il funzionamento del motore dopo l'installazione dell'apparecchiatura.

  • Oscilloscopio
• Diagnosi e manutenzione

  Le funzioni di diagnosi e manutenzione sono disponibili per risolvere i problemi e per intervenire dopo l'avvio del funzionamento.

  • Monitor dell’allarme
  • Monitor informazioni dell’unità
  • Monitor dello stato

Fare clic qui per i dettagli sulle funzioni del software di supporto

• Parallel Link Robot

• 6-Axis Arm Robot

Products that can be connected to multi-axis drivers are as follows.

For more details, please contact your nearest branch, sales office, or Customer Support Center.

Motor (DC input)

Series Name	Product Image (Typical example)	Overview
αSTEP AZ Series		The motor is equipped with an ABZO sensor. Reduces the return-to-home time, and eliminates the need for control of external sensors. There are product lines from □20 mm to □60 mm, with various geared types also available.

Electric Actuator (DC input)

These are αSTEP AZ Series equipped electric actuators.

Series Name	Product Image (Typical example)	Overview
Electric Linear Slides EZS Series		2 types of linear slide sections are available: Straight type and reversed motor type. The simple dust-resistant structure made from a stainless steel sheet prevents ingress of foreign particles and reduces emission of dust.
Electric Linear Slides EZS Series For Clean Room Use		While maintaining the functionality and performance of the EZS Series, this product uses low-dust clean grease for ball screws, guides, and bearings to achieve clean room standards (ISO Standards Class 3).
Electric Cylinders EAC Series		2 types of cylinder sections are available: Straight type and reversed motor type.
Compact Electric Cylinders DR Series		This is a ball screw mechanism product suitable for fine feeding and high precision positioning in a linear motion. More compact products with frame sizes of 20 mm and 28 mm are available. Contributes to space saving and wiring reduction. Push-motion operation also possible.
Compact Electric Cylinders DRS2 Series		This is a ball screw mechanism product suitable for fine feeding and high precision positioning in a linear motion. This is a product line with frame sizes of 42 mm and 60 mm. Contributes to space saving and wiring reduction. Push-motion operation also possible.
Rack-and-Pinion System L Series		In addition to high precision positioning, it can also transport heavy loads to a maximum of 100 kg.
Hollow Rotary Actuators DGII Series		High power drive is possible due to the speed reduction mechanism inside the actuator.
