Features and Structure of Rack-and-Pinion System
The rack-and-pinion system is an electric actuator that combines a rack and pinion mechanism with a motor.
"Compact," "High Strength" Linear Motion Mechanism Can be Easily Constructed
The rack-and-pinion system can easily convert the rotation of the motor into linear motion.
Although the linear motion mechanism part is compact in design, it can transport a large load due to its high strength processing.
Movement of Rack-and-Pinion system
The gear (deceleration part) receives the motor of the pinion shaft, and further transmits it from the pinion gear to the rack to convert it into linear motion.
Reduces Startup Time From Design
The rack-and-pinion system helps reduce the man-hours required for design and assembly.
Comparison of the Number of Components
-

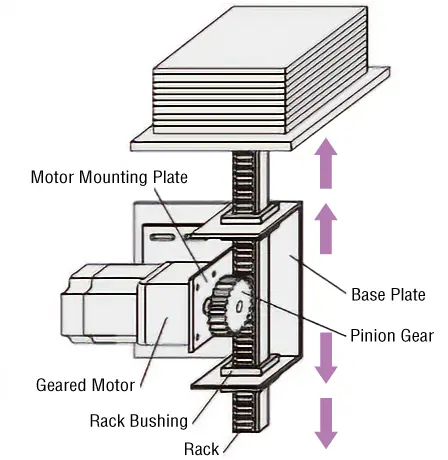

[If Build In-House]
-

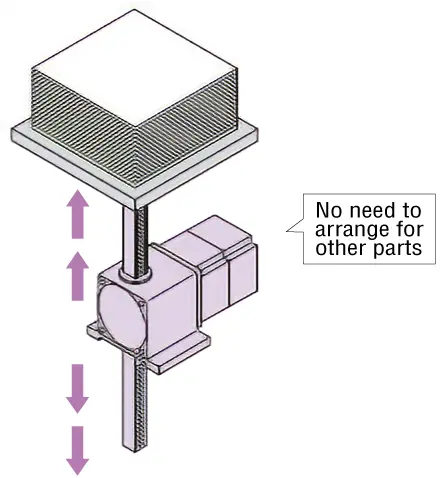

[Rack-and-Pinion System]
Space Saving
By fixing the screw holes on both ends of the rack, the main unit can be self-propelled.
This function is effective for equipment that cannot provide motor space.
Large Loads Can be Transported by Vertical Operation
The rack-and-pinion system can transport the transportable mass if it is mounted without consideration of the moment of inertia.
-
[For Electric Linear Slide With Ball Screw Mechanism]
-
[For Rack-and-Pinion System]
Applications
The rack-and-pinion system, which can be applied to a variety of applications, is a user-friendly product that can be selected as if it were a component.
