αSTEP

Alpha step

A stepper motor-based motor with a unique control that is a "hybrid" of the advantages of both "open loop control" and "closed loop control." Suitable for applications where position, speed, and torque are to be controlled.

Suggestions on Solving Problem With Stepper Motors and Servo Motors

αSTEP
Series List

αSTEP Battery-Free Built-In Absolute Encoder AZ Series

αSTEP AZ Series Battery-Free Built-In Absolute Encoder

AZ Series
  • Battery-Free Built-In Absolute Encoder
  • AC/DC Input
  • Industrial Network Compatible
  • Wide Speed and Torque Range

αSTEP AZ Series mini Driver DC Input

AZ Series mini Driver DC Input
  • Compact and Lightweight With DC Input
  • Compatible With Battery Power Supply
  • Industrial Network Compatible

αSTEP AZ Series Multi-Axis Driver DC Input

AZ Series Multi-Axis Driver DC Input
  • DC Input
  • Control of Up to 4 Axes
  • Industrial Network Compatible

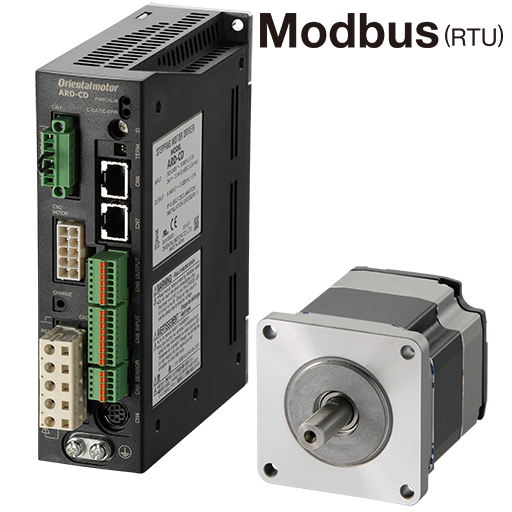

αSTEP AR Series

αSTEP AR Series

AR Series
  • Resolver Sensor Equipped
  • AC/DC Input
  • Low Cost of Entry

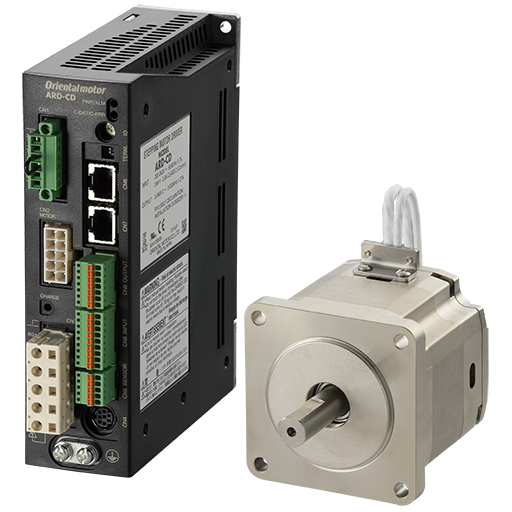

αSTEP AR Series Vacuum Type

AR Series Vacuum Type
  • Resolver Sensor Equipped
  • Used in a Vacuum Environment of 10 -5 Pa
  • AC/DC Input

αSTEP AZ Series-Equipped Electric Actuators

Hollow Rotary Actuators DGII Series

DGII Series
  • Integrated hollow table and closed-loop stepper motor
  • Products equipped with servo motors are also available
  • Frame Size 60 to 200 mm, Diameter of Hollow Section φ28 to 100 mm
  • High-strength, high precision positioning

Compact Electric Cylinders DR Series

DR Series
  • A Compact Structure That Integrates a Ball Screw and Stepper Motor
  • Closed Loop Stepper Motor Equipped
  • Stroke 25/30 mm, Frame Size 20/28 mm
  • Ultra-High Precision Positioning

Compact Electric Cylinders DRS2 Series

DRS2 Series
  • A Compact Structure That Integrates a Ball Screw and Stepper Motor
  • Closed Loop Stepper Motor Equipped
  • Stroke 40/50 mm, Frame Size 42/60 mm, Maximum Thrust 500 N
  • Ultra-High Precision Positioning

Electric Cylinders EAC Series

EAC Series
  • Ball Screw Drive
  • Closed Loop Stepper Motor Equipped
  • Stroke 50 to 300 mm
  • Ideal for pushing and carrying applications

Electric Linear Slides EZS Series

EZS Series
  • Ball Screw Drive
  • Closed Loop Stepper Motor Equipped
  • Stroke 50 to 300 mm
  • Compact, High Rigidity, Simple Dust-Resistant Structure

Electric Linear Slides EZS Series for Clean Room Use

EZS Series for Clean Room Use
  • Ball Screw Drive
  • Closed Loop Stepper Motor Equipped
  • Stroke 50 to 300 mm
  • Compact, High Rigidity, for Clean Room Use

Rack-and-Pinion System L Series αSTEP AZ Series Equipped

L Series αSTEP AZ Series Equipped
  • A Structure That Integrates a Rack-and-Pinion Mechanism With a Stepper Motor
  • Closed Loop Stepper Motor Equipped
  • Stroke 100 to 1000 mm
  • Maximum Transportable Mass 100 kg

Electric Grippers EH Series

EH Series
  • Achieve Delicate Grasp
  • Closed Loop Stepper Motor Equipped
  • 2-Finer/3-Finger Type Available
  • Maximum Gripping Force 50 N

Related Products

Servo Motors
AZX Series
Built-In Battery-Free Absolute Encoder
Output Power: 400 W and 600 W

Related Products

A servo motor equipped with battery-free absolute encoder.
Demonstrating high torque at high speeds makes it suitable for use of positioning with large travel amount.
Since the basic operation method is the same as that of the AZ Series, they can be easily used together within the equipment.

  • Click here for more details on the product.
