CVD Series Driver Installation Method

You Can Select the Driver That Best Suits Your Installation Method

The following is an introduction to how to install the driver, taking into consideration the shape and connector orientation to match the installation method.

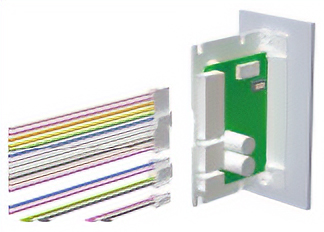

Installation Example: Install the Driver Vertically

The connectors are oriented horizontally to the board. Oriental Motor offers DIN rail mounting brackets and circuit product covers (for pulse input type) as accessories.

  • Higher Torque in the Low Speed Range
  • Right-Angle Type With Mounting Plate

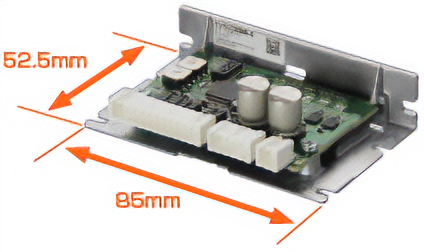

    Higher Torque at All Speeds

Installation Example: Install the Driver Horizontally

The connector faces upward to the board.

  • The connector faces upward to the board

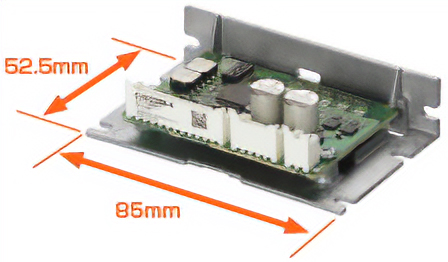

  • With Mounting Plate
    With Mounting Plate

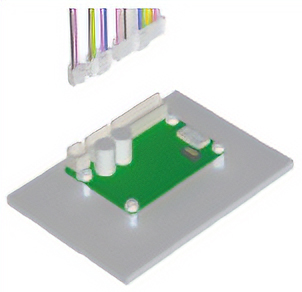

Installation Example: Install the Driver Horizontally on a Prepared Mounting Plate

The connector faces upward to the board. This type is without a mounting plate.

  • The connector faces upward to the board

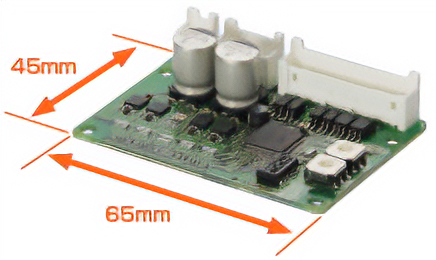

  • Without Mounting Plate
    Without Mounting Plate
