Brushless Motor BLH Series Product Line
Motor (Connector type Degree of protection IP40)
- Please purchase the motor, driver and various cables separately.
- Detailed specifications of the motor required for combination with the driver are prepared. For details, please contact your nearest Oriental Motor branch or sales office.
| Output Shaft Type | Frame Size [mm] |
Rated Output Power [W] |
Gear Ratio | Rated Voltage [V] |
Driver Type | Connection Cable (Between the Motor and the Driver) |
Connection Cable Set |
|---|---|---|---|---|---|---|---|
| Parallel Shaft Gearhead GFS Gearhead* | 42 | 15 | 5~100 | 24 VDC | Analog Setting Type ／ Digital Setting Type ／ RS-485 Communication Type |
Connection Cable 0.5 m/1 m/1.5 m /2 m/3 m/5 m Flexible Connection Cable 1 m/1.5 m/2 m /3 m/5 m |
Power Supply Cable I/O Signal Cable 2 types (0.3 m and 1.0 m) |
| 60 | 30 | ||||||
| 80 | 50 | ||||||
| CS Geared Motor | 42 | 15 | 5, 10, 15, 20 |
||||
| 42 | 30 | ||||||
| 60 | 30 | ||||||
| 60 | 50 | ||||||
| Hollow Shaft Flat Gearhead FR Gearhead | 60 | 30 | 5~200 | ||||
| 80 | 50 | ||||||
| Round Shaft Type | 42 | 15 | - | ||||
| 42 | 30 | ||||||
| 60 | 30 | ||||||
| 60 | 50 | ||||||
| 80 | 50 |
- *The 15 W geared motor has an integrated motor and gearhead.
Motor (Lead wire type Degree of protection IP40)
Please purchase the motor, driver and various cables separately.
| Output Shaft Type | Frame Size [mm] |
Rated Output Power [W] |
Gear Ratio | Rated Voltage [V] |
Driver Type | Connection Cable*2 (Between the Motor and the Driver) |
Connection Cable Set*3 |
|---|---|---|---|---|---|---|---|
| Parallel Shaft Gearhead GFS Gearhead*1 | 42 | 15 | 5~100 | 24 VDC | Analog Setting Type ／ Digital Setting Type ／ RS-485 Communication Type |
Connection Cable 1.5 m/2.5 m/4.5 m Flexible Connection Cable 1.5 m/2.5 m/4.5 m |
Power Supply Cable I/O Signal Cable 2 types (0.3 m and 1.0 m) |
| 60 | 30 | 5~200 | |||||
| 80 | 50 | ||||||
| 90 | 100 | ||||||
| Hollow Shaft Flat Gearhead FR Gearhead | 60 | 30 | |||||
| 80 | 50 | ||||||
| 90 | 100 | ||||||
| Round Shaft Type | 42 | 15 | - | ||||
| 60 | 30 | ||||||
| 80 | 50 | ||||||
| 90 | 100 |
- *1
- The 15 W geared motor has an integrated motor and gearhead.
- *2
- The length of the connection cable/flexible connection cable for 100 W is 1.5 m.
- *3
- Power supply cable/I/O signal cable are included with the 100 W driver.
Motor (Cable type Degree of protection IP65)
Please purchase the motor, driver and various cables separately.
| Output Shaft Type | Frame Size [mm] |
Rated Output Power [W] |
Gear Ratio | Rated Voltage [V] |
Driver Type | Connection Cable*1 (Between the Motor and the Driver) |
Connection Cable Set*2 |
|---|---|---|---|---|---|---|---|
| Parallel Shaft Gearhead GFS Gearhead | 60 | 30 | 5~200 | 24 VDC | Analog Setting Type ／ Digital Setting Type ／ RS-485 Communication Type |
Connection Cable 1.5 m/2.5 m/4.5 m Flexible Connection Cable 1.5 m/2.5 m/4.5 m |
Power Supply Cable I/O Signal Cable 2 types (0.3 m and 1.0 m) |
| 80 | 50 | ||||||
| 90 | 100 | ||||||
| Hollow Shaft Flat Gearhead FR Gearhead | 60 | 30 | |||||
| 80 | 50 | ||||||
| 90 | 100 | ||||||
| Round Shaft Type | 60 | 30 | - | ||||
| 80 | 50 | ||||||
| 90 | 100 |
- *1
- The length of the connection cable/flexible connection cable for 100 W is 1.5 m.
- *2
- Power supply cable/I/O signal cable are included with the 100 W driver.
Environments with Dust and Splash Water, IP65 Degree of Protection (Cable type)
Motors and electromagnetic brake motors of cable type offer IP65 degree of protection. (Excluding mounting surface of the round shaft type. Shaft material is steel.)
Electromagnetic Brake Motor (Cable type Degree of protection IP65)
Please purchase the motor, driver and various cables separately.
| Output Shaft Type | Frame Size [mm] |
Rated Output Power [W] |
Gear Ratio | Rated Voltage [V] |
Driver Type | Connection Cable*1 (Between the Motor and the Driver) |
Connection Cable Set*2 |
|---|---|---|---|---|---|---|---|
| Parallel Shaft Gearhead GFS Gearhead | 60 | 30 | 5~200 | 24 VDC | Analog Setting Type ／ Digital Setting Type ／ RS-485 Communication Type |
Connection Cable 1.5 m/2.5 m/4.5 m Flexible Connection Cable 1.5 m/2.5 m/4.5 m |
Power Supply Cable I/O Signal Cable 2 types (0.3 m and 1.0 m) |
| 80 | 50 | ||||||
| 90 | 100 | ||||||
| Hollow Shaft Flat Gearhead FR Gearhead | 60 | 30 | |||||
| 80 | 50 | ||||||
| 90 | 100 | ||||||
| Round Shaft Type | 60 | 30 | - | ||||
| 80 | 50 | ||||||
| 90 | 100 |
- *1
- The length of the connection cable/flexible connection cable for 100 W is 1.5 m.
- *2
- Power supply cable/I/O signal cable are included with the 100 W driver.
Various Motor Types
-

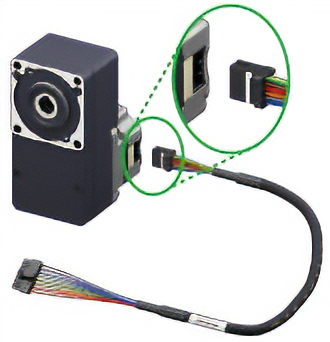

- Connector Type (Degree of Protection IP40)
Motors -

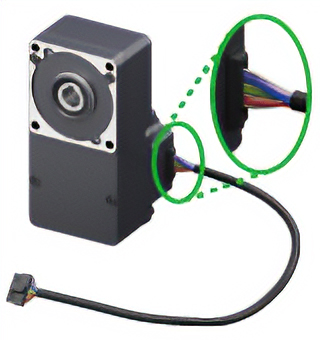

- Lead Wire Type (Degree of Protection IP40)
Motors -

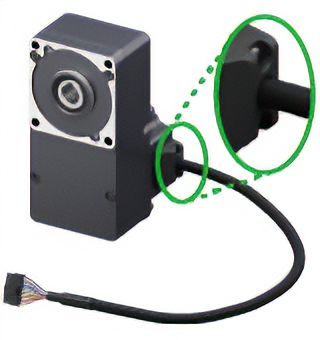

- Cable Type (Degree of Protection IP65)
Motor/
Electromagnetic Brake Motor
